A single-handed, high-performance one-design that offers apparent wind sailing. Designed for the larger sailor, and optimised for performance, easy handling and ergonomics, it redefined single-handed sailing. Enjoy high-performance action, your style.
Sail World Boat of the Year – 2017
A single-handed, high-performance one-design that offers apparent wind sailing. Designed for the larger sailor, and optimised for performance, easy handling and ergonomics, it redefined single-handed sailing. Enjoy high-performance action, your style.
Sail World Boat of the Year – 2017
Highlights
Three Mainsail sizes offer added versatility
The square top mainsail has three size options to accommodate different weather conditions and different sailor weight-to-power ratios. Research on the best sail-to-weight ratio suggests that 190Ibs / 86kgs sailor weight is the sweet spot. Anyone over 86kgs / 190Ibs is better suited to the A or B sail. Anyone under 86kgs / 190Ibs is better suited to the B or C sail.
Ballasted centreboard offers extra stability
The VX Evo’s ballasted centreboard, combined with different sail options, provides a balanced, stable platform for awesome fun. Gybe, tack, or reach. It quickly becomes second nature.

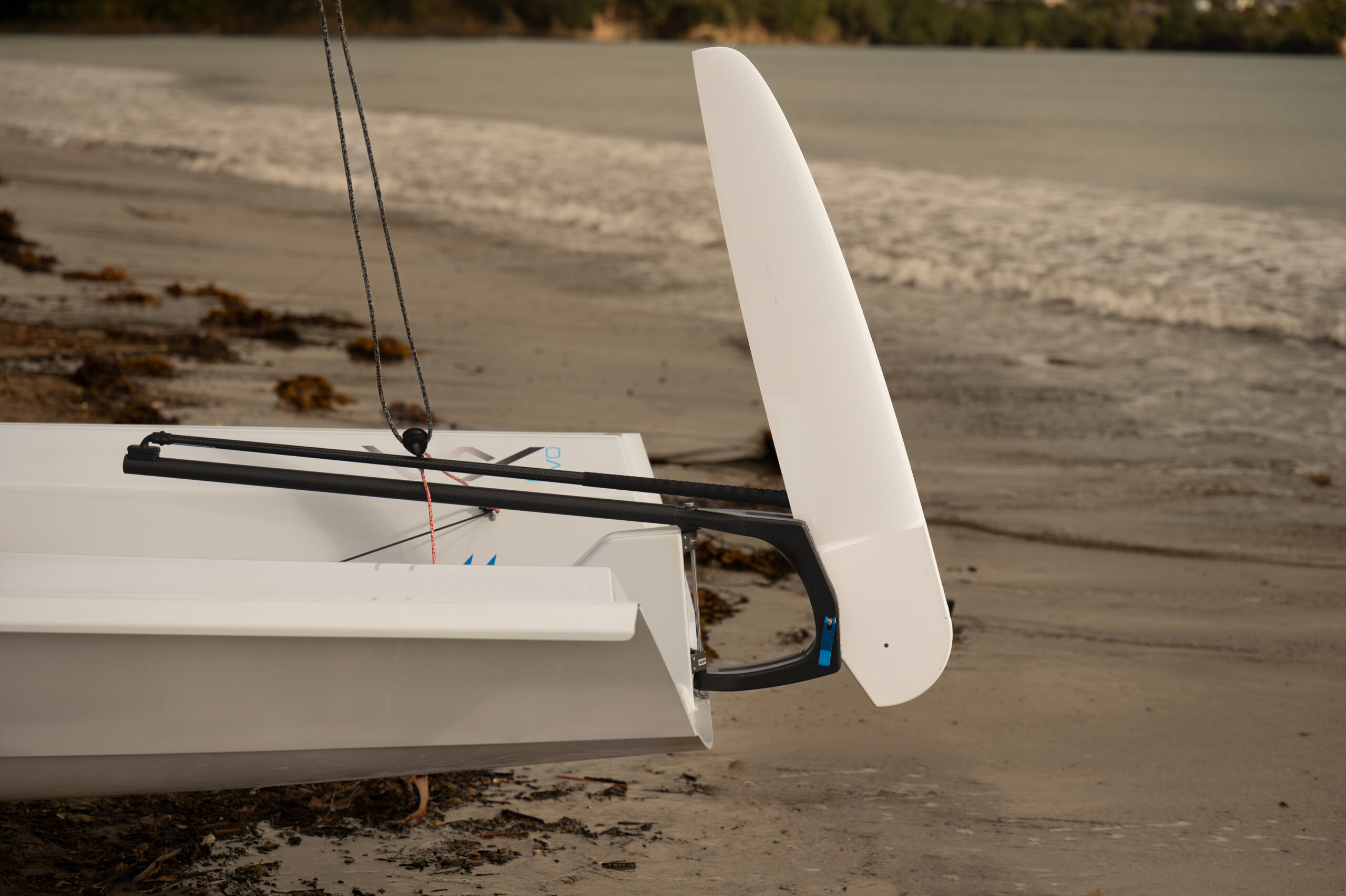

Simple to launch
The kickup rudder system makes launching and retrieving very easy in virtually any location. Additionally, the hollow, one-piece carbon rudder stock with a tiller affixed provides a strong, lightweight solution to keep weight out of the stern and, to ensure very accurate control over steerage.
Easy hoists and drops
A single line to launch the gennaker, prod makes hoists and drops very easy.

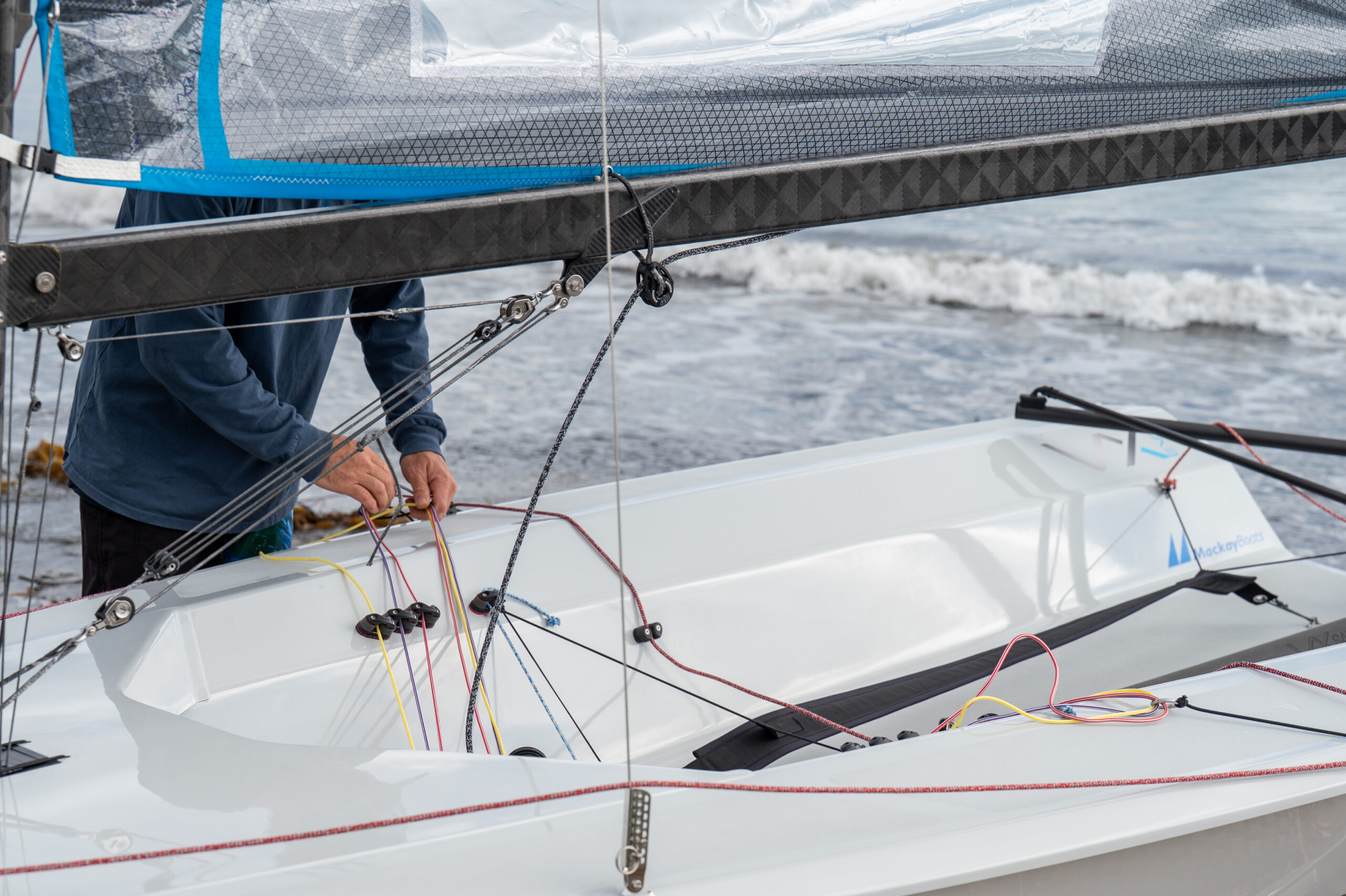

Centralised controls for quick adjustments
The centralised position of the controls and the angle of the control cleats enable quick access to making adjustments.

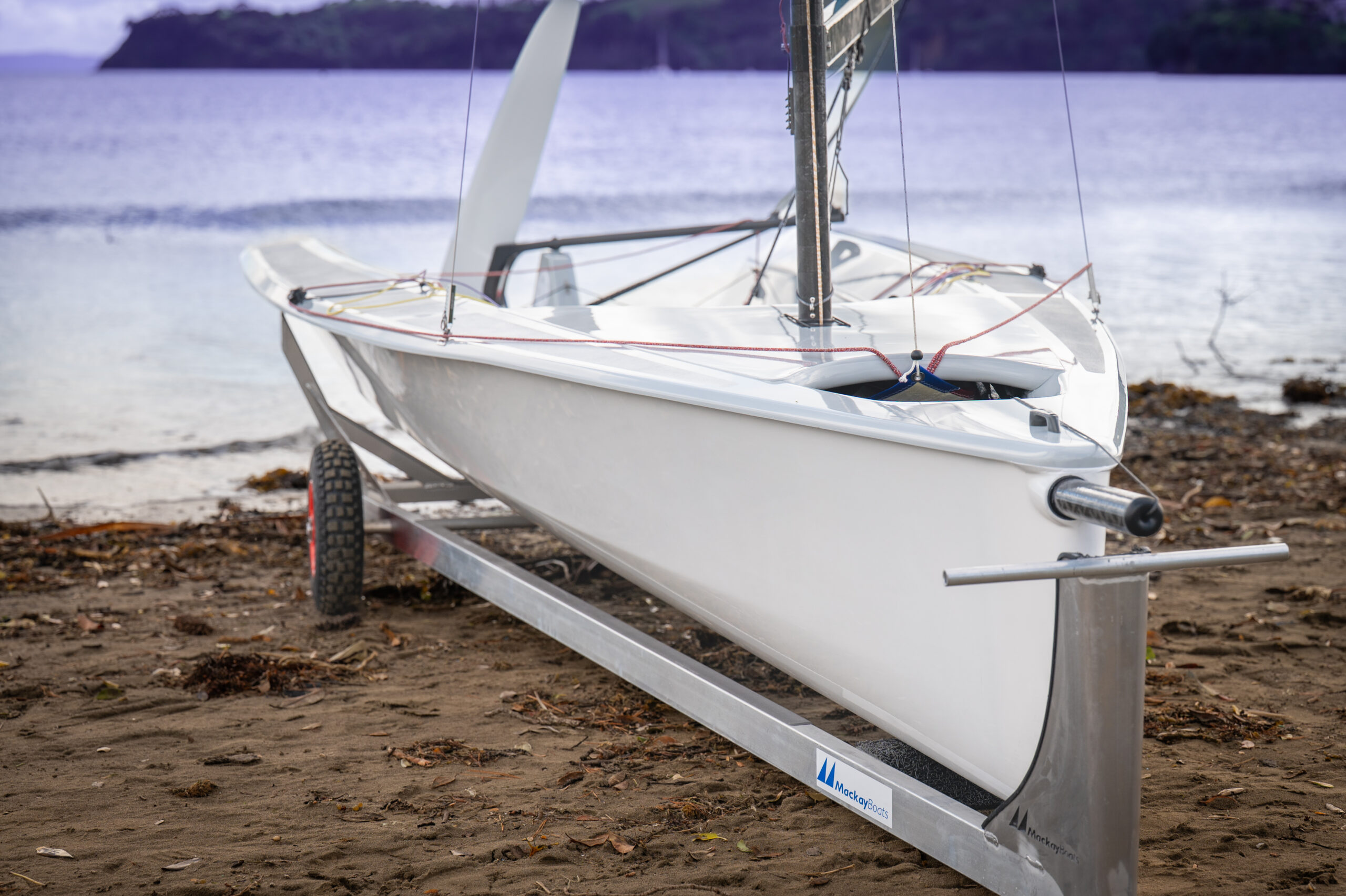

Transportable – Lightweight beach trolley and transport
The lightweight, aluminium beach trolley makes launching and retrieving the boat simple, while the open transom makes getting in and out of the boat easy for the helm’s person. The two-piece mast can be transported inside the cockpit.
Performance sailing your way.
VX Evo Specifications
VX Evo Specifications
Overview
|
Designer
|
Ross Weene, Brian Bennett |
|
Class Racing
|
One Design |
|
Class Association
|
Local |
|
Ideal Weight
|
80 – 120kg’s |175 to 265Ibs |
|
Crew
|
1 person |
Hull
|
LOA
|
4.78m | 15’8″ |
|
Beam
|
1.74m | 5’8″ |
|
Boat Weight
|
79kg | 174Ibs (includes centreboard non-ballasted, rudder stock, tiller, tiller extension, all sails, boom, mainsheet, mast, halyards, and stays) |
|
Material
|
E-Glass with carbon reinforcement in key areas. PVC core and hard gel coat surface. |
Sails
|
Brand
|
Open to any sail maker to build to specified class rules |
|
Mainsail
|
Fully battened square top |
|
Spinnaker
|
Asymmetric |
|
Mainsail Large
|
10.2sqm / 110sq ft |
|
Mainsail Standard
|
9.3sqm / 100sq ft |
|
Mainsail
|
8.4sqm / 90sq ft |
|
Gennaker
|
11sqm / 120sq ft |
Systems
|
Mainsheet system
|
Off the boom |
|
Vang/Kicker
|
Cascading |
|
Sail Controls Position
|
Centralised |
|
Gennaker Hoist
|
Single line for halyard/retrieval /pole launcher |
|
Gennaker Feature
|
Large-mouth launcher |
Spars
|
Mast, Boom,
|
Carbon |
|
Mast Length
|
6.452m | 21’2″ |
|
Mast assembly
|
Two-piece |
|
Prod
|
Tractable carbon |
Foils
| Keel Type | Centreboard, ballasted option |
|
Draft |
1110mm | 3.64ft |
|
Rudder |
Removable rudder |
|
Rudder stock |
One piece with tiller extension attached |
Optional Extras
|
Beach Trolley
|
|
Top and bottom covers
|
|
Mainsheet floor package
|
|
Atlas A2 Sailing Instrument
|
|
Vakaros Atlas A2 GPS Mount Bracket
|
